Unlock the Full Potential

This installation was on a 4-story home, and the tech had not yet gone to the basement to troubleshoot the “infinity” water source heat pump, as he was told he by the homeowner. He was in the attic at the infinity furnace above the 4th floor. He was getting his dcv in the proper range on his A and B green plug on the air handler, 3 to 4 vdc. His indoor board ohm reading was in range, 28k to 32 k. The tech ohmed out the A and B thermostat wires on the water source heat pump from the upstairs. His ohm reading was not in range of a normal infinity board. His reading was around 64.4k. The tech then made the long walk to the basement where the “geothermal heat pump” was located. Bingo.

Now get out there and organize some zone wiring!

Zone equipment would be identified as indoor unit- blue black/ outdoor unit-blue green:

Close-up of two wrapped wire bundles with multicolored insulated strands on a white background

Customer dashboard with left navigation, blue summary tiles, and a highlighted button in the lower right.

I have cropped some screens, and modified the serial numbers to keep certain dealer and customer’s information private. Setting the customers up on the portal is an easy process and could reap many benefits. Carrier and Bryant are going to begin utilizing this portal more with new upcoming equipment.

Get out there and get connected to the portal!

Dark settings dialog with checked notification options and a blue Save System button highlighted.

Dashboard showing two “Connected Portal” cards, one blue and one red, on a white page.

Outdoor Control Details page with sidebar menu and accordion sections highlighted by purple arrows

These units are more complex and have more variables to consider.

*to keep things simple, we typically round close decimal numbers*

Min. Piping Length per each indoor unit- This is the minimum allowed amount of lineset for each indoor unit

Standard Piping Length per each indoor unit- this is the amount of lineset that has been “reserved” for each indoor unit for refrigerant charge purposes.

Max. outdoor-indoor height difference- how far you can separate the indoor from the outdoor vertically. Two labels are shown- IU indoor unit above OU outdoor unit and vice versa.

Max. height different between indoor units- if the indoor units are on different levels, then they should not exceed this amount of vertical separation amongst themselves.

Max. Length per each indoor unit- no indoor unit should have a lineset longer than this number. Do not exceed this number for any indoor unit lineset.

Max. Piping Length with no additional refrigerant charge- add together all of the lineset lengths for all the indoor units. If your lengths are above this number, then additional charge is needed.

Total Maximum Piping Length per system– when adding together all the indoor pipe lengths, this is the total length that the unit can support. Pipe lengths greater than this are not approved nor recommended.

Additional refrigerant charge- if your total lineset length is over the “Max. Piping Length with no additional refrigerant charge” amount, this is how many ounces per foot should be added to the unit for proper operation.

Pipe sizes: these show the pipe sizes with an asterisk (*) and then the quantity of those ports.
For example: from the 36K– 1/2 *2+3/8*2
This means 2 at ½ and 2 at 3/8.

In the event that the correct line set size is ran and it is not the same size as the hookup of this unit, use the factory supplied adapters to make the connections.

*Wiring diagrams highlighted with colors chosen for high contrast- not for wire color designation*

Low voltage starts in the red box at the transformer, 24vac goes to the Indoor Fan Board (IFB), through a fuse and on to the thermostat. Depending on what the thermostat calls for, 24vac will be sent down a different wire(s) to turn on/off the multiple devices in the system. The other low voltage wire (C) has an unbroken path to EVERY component in the unit. I have highlighted the pathway in blue and circled each component in purple. This wire/path is something each device has in “common”—it is the common wire. In layman’s terms, the common wire is the return pathway for voltage to come back to the transformer since it left out on the 24vac side.

The Common wire/terminal is always the one thing that is relatable or in common with the surrounding wires/terminals. Relays, motors, control boards, and even transformers all have some type of common wire/terminal. Common for a relay isn’t the same as common on a motor, but within each given device they carry the same meaning. Now go back and reread the second paragraph above—it will have a deeper meaning now.

Challenge: Check out the high voltage side of the Transformer. It has a COM terminal…. it’s not low voltage common. What is it?

That’s all.

A pressure transducer is often called a pressure transmitter. It’s a device that converts pressure into an analog electrical signal. Although there are various types of pressure transducers, one of the most commonly used is a strain-gauge base transducer.

The conversion of pressure into an electrical signal is achieved by the physical deformation of the strain gages which are bonded into the diaphragm of the pressure transducer and wired into a Wheatstone bridge configuration. Pressure applied to the pressure transducer produces a deflection of the diaphragm which introduces strain to the gauge. The strain will produce an electrical resistance change proportional to the pressure.

A 5 VDC output low pressure transducer provides a 0-5 VDC data for the AOC control board to interpret for a 0-200 PSIG range of pressure at the suction line. This interpreted pressure data is then intelligently used by the AOC board for several safety functions: compressor protection, low pressure cut out, low of charge, EXV control, and lubrication management.

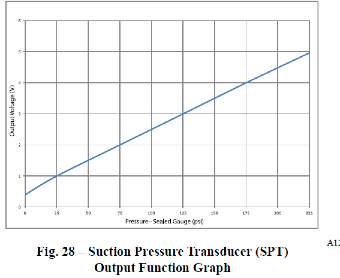

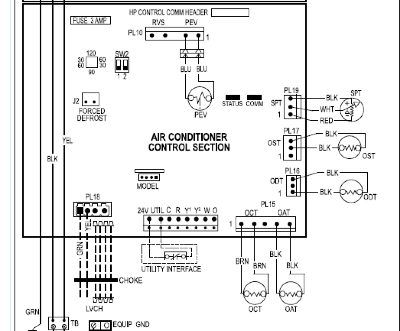

The suction transducer is a 3-wire plug PL19 on the control board. You will need a volt meter set to DC voltage to take a reading. As shown in the chart below, with a 125 psi reading on your gauges you should read 3 VDC between the red and black wire on PL19.
