This installation was on a 4-story home, and the tech had not yet gone to the basement to troubleshoot the “infinity” water source heat pump, as he was told he by the homeowner. He was in the attic at the infinity furnace above the 4th floor. He was getting his dcv in the proper range on his A and B green plug on the air handler, 3 to 4 vdc. His indoor board ohm reading was in range, 28k to 32 k. The tech ohmed out the A and B thermostat wires on the water source heat pump from the upstairs. His ohm reading was not in range of a normal infinity board. His reading was around 64.4k. The tech then made the long walk to the basement where the “geothermal heat pump” was located. Bingo.

Now get out there and organize some zone wiring!

Zone equipment would be identified as indoor unit- blue black/ outdoor unit-blue green:

Two wire bundles with colored insulated strands and blue tape ties on brown cable ends.

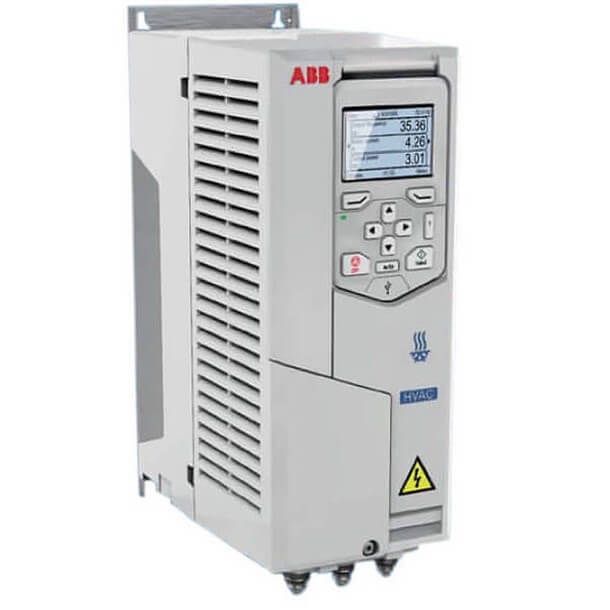

Link to Manuals that pertain to the ACH580

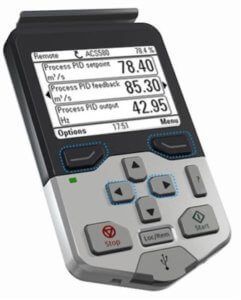

To use the Bluetooth, all you have to do is download and install the app for your phone to connect with the Bluetooth keypad. Then, you will have access to the drive information, firmware version, drive type, panel firmware, drive status, and last fault. It will show the fan condition of the main fan and the second fan as well. It will show motor usage in days and amount of time powered on.

Go to Play Store for Android or

Go to APP Store for Iphone

Type “Drivetune” in your search but without the quotation marks.
