Why Do Systems Freeze in Cooling Mode?

When troubleshooting any issue, it is always best to start with the most probable cause and work your way to the less likely possibilities. In this article, I will cover some of the basics of why systems freeze up during cooling mode. It might seem like HVAC 101 to some, but for the new talent coming into our trade, this knowledge can be invaluable.

Low air flow and/or low refrigerant through the indoor evaporator coil

It is important to understand that refrigerant pressure and temperature are relative. If the pressure drops, then the temperature falls accordingly. If the temperature falls below freezing, then available moisture in the air will turn to frost and eventually ice. This process usually begins just past the metering device. When left unchecked, it can work its way across the coil and back to the compressor.

How dirty is the filter? This should always be the first thing to check.

A blower motor must draw air in to move it properly. Low airflow because of a dirty filter can reduce capacity and cause a system to freeze. Closed supply vents on a system can also cause airflow to slow down through the indoor coil. However, these may not be the only issues. Make sure to inspect the entire system thoroughly for other potential problems.

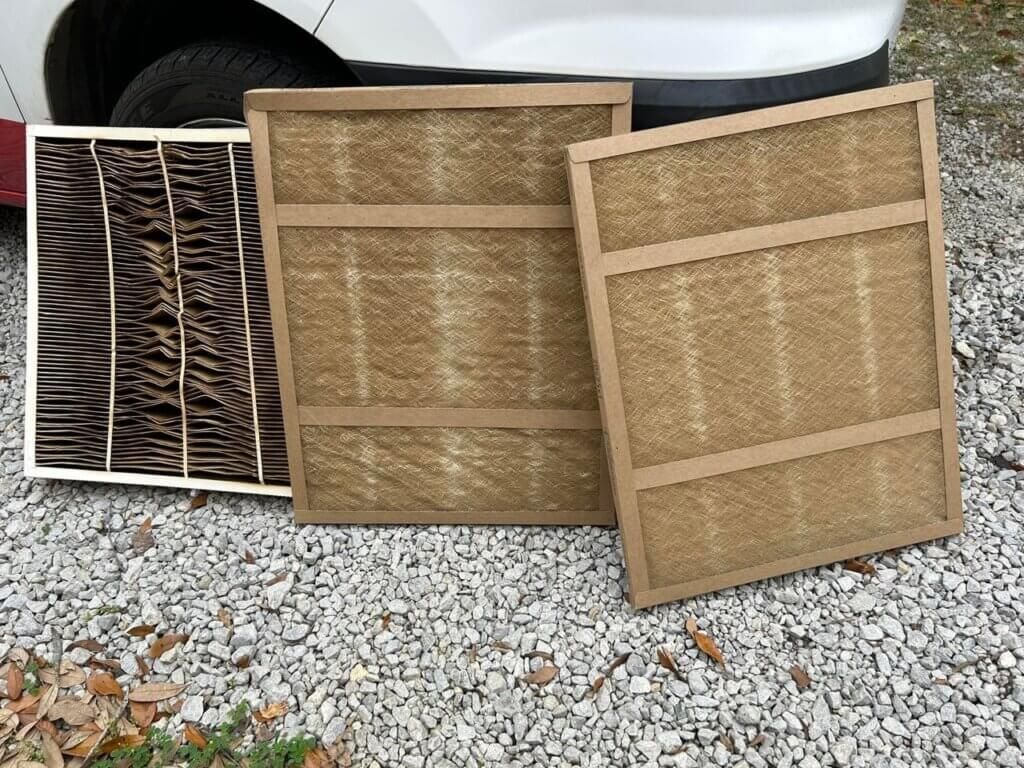

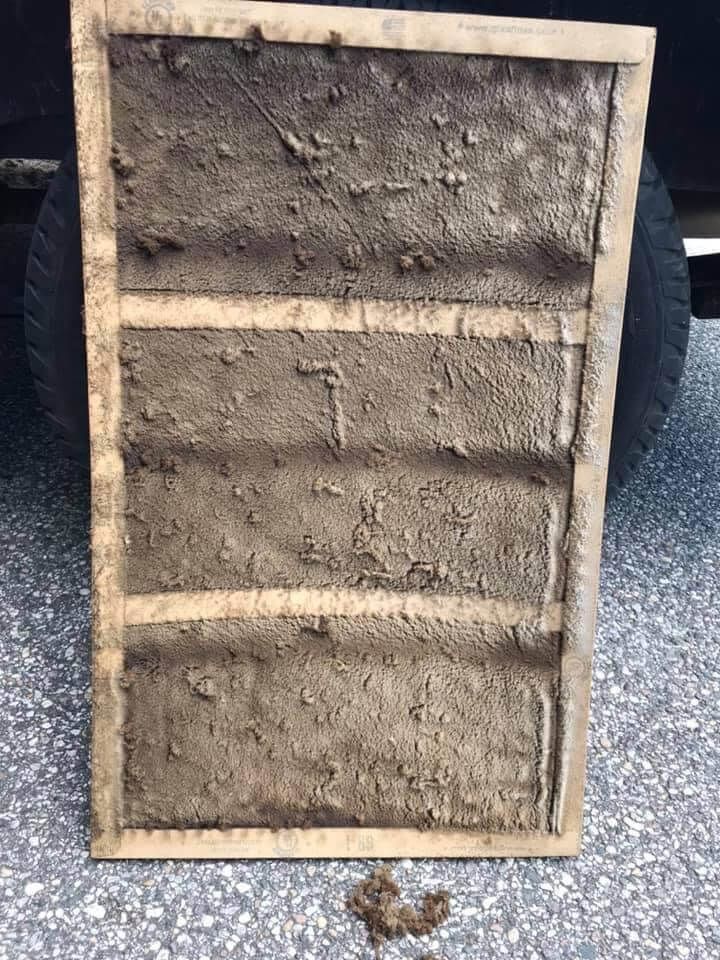

Remind Your Customers to Change Their Filters Regularly. Photos Courtesy of Josh Petty

An undersized return can contribute to a system freezing.

While checking the filter, take measurements to know if the equipment has enough return air. A good rule is 2 cfm (cubic feet per minute) of air per square inch. Your local and state codes may vary. Most conventional systems are designed to deliver 350-400 cfm per ton.

For example: A 3-ton system moving 400 cfm per ton provides 1200 cfm and requires 600 square inches of return. For this system, a 20×30 return air opening is ideal. Ductulators, sizing charts, and apps are handy tools for verifying the proper size of ductwork.

What condition is the evaporator coil?

If it is within line of sight when checking the filter, take note of accumulation or damage. If it is not visible from the filter location, put forth the effort to visually inspect the coil. Knowing the condition will assist in your final diagnosis. If it is too frozen over, you may not be able to tell until thawed.

Does the blower motor run? No… Figure out why and remedy the issue.

Is the outdoor contactor stuck closed? Yes… Replace it.

The points below are common causes for an evaporator coil freezing.

• Open blower relay
• Failed motor and ECM (Electronically Commutated Motor) module
• Loose or broken belt

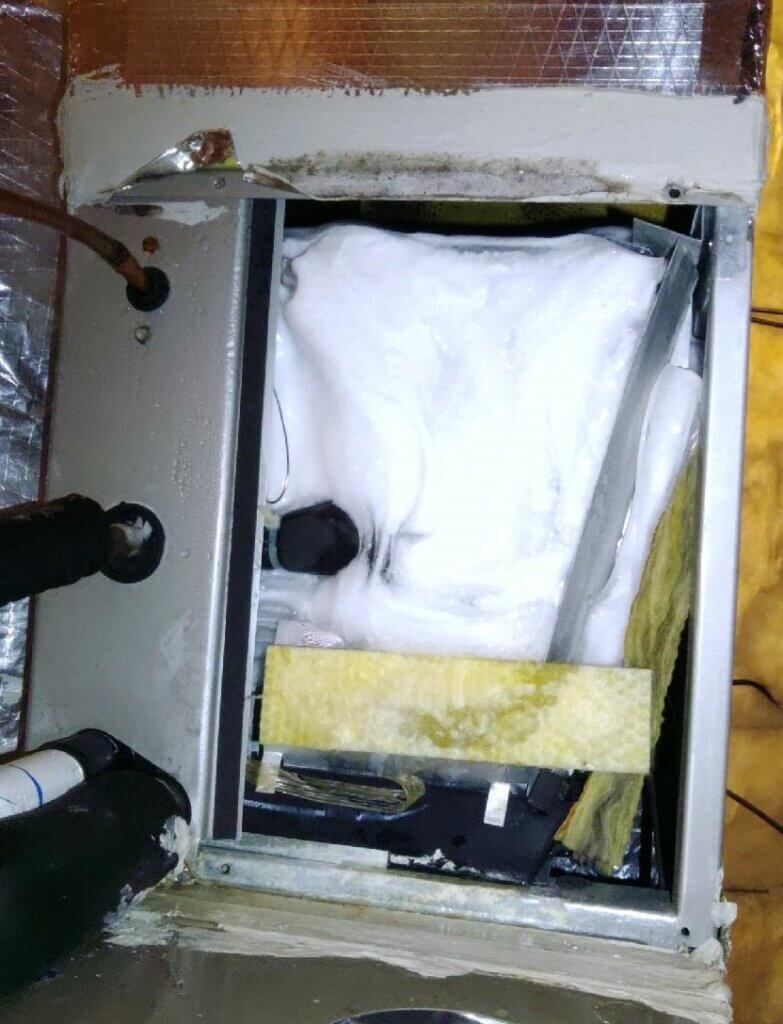

• Insulation sucked into the coil or the blower
• Outdoor contactor stuck closed

Is the cased coil installed correctly?

Many applications will have a furnace that is narrower than the evaporator coil. Always follow the guidelines set in the installation manuals. Pay attention to how air flows through the coil. Make sure all areas are getting equal distribution.

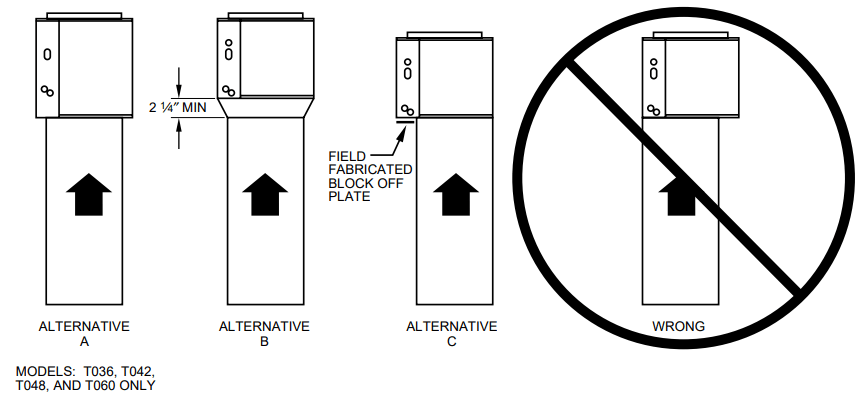

Up Flow Cased "N" Coil Installation

How does the refrigerant charge look? How is the flow?

Before you check pressures and temperatures, make sure the system is completely thawed. Any ice remaining will affect your readings.

• Low suction pressure with little to no superheat, and (usually) slightly high subcooling indicates poor airflow through the indoor coil.
• Low suction pressure with high superheat and little to no subcooling is a strong indication of low refrigerant charge.
• Low suction pressure with high superheat and high subcooling are symptoms of a refrigerant restriction.



These results may vary based on many other factors in the system.

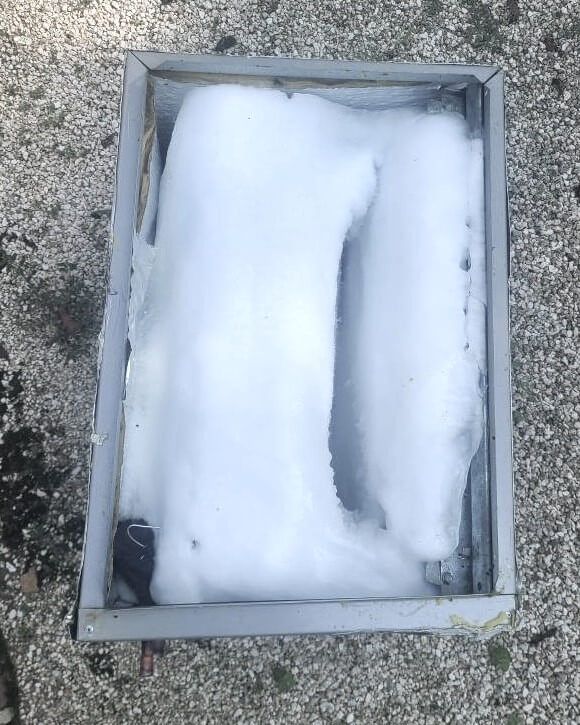

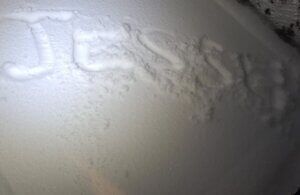

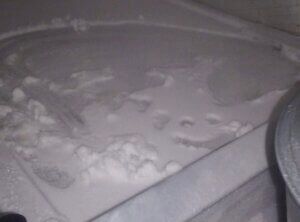

Frozen Coil from Low Refrigerant. Photos Courtesy of Joe Miller

Tech Tip: Never leak search a coil while ice is present. For many leak detectors, the change in atmosphere around thawing Ice can produce a false positive.

Is the metering device restricted?

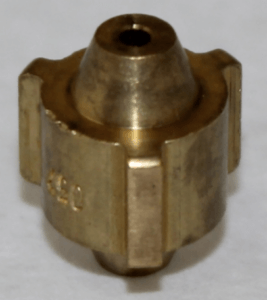

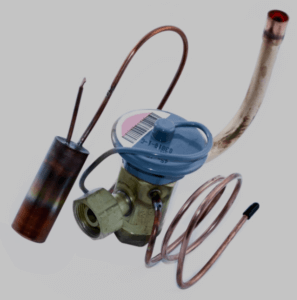

Metering devices such as pistons and TXVs are a common place for a restriction. Filter driers can occasionally become clogged. Find this issue by measuring the temperature on both sides of the drier. A temperature drop indicates a restriction. The evaporator coil itself can become restricted. Diagnose by eliminating air flow and watching for irregular freezing patterns in the capillary tubes and individual sections of the coil.

Do you have a kink in the refrigerant line?

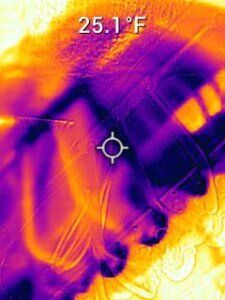

A severe kink in a line can cause refrigerant flash and a significant drop in pressure and temperature. Sometimes, it may be necessary to read temperatures at multiple points across the lines to find this issue.

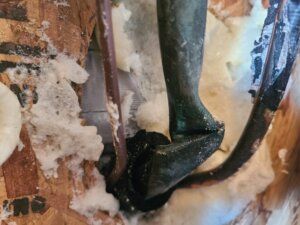

Kinked Suction Line Found in a Wall Cavity. Photo Courtesy of Joe Miller

Is there a need for low ambient cooling?



In applications such as server rooms, systems will need to run in the cool mode year-round. If the refrigerant ever falls below freezing, it begins a steady process of forming ice across the evaporator coil. In situations where low ambient cooling is required, it may be necessary to add a freeze-stat to the indoor coil and/or head pressure control at the condenser.

This article has provided a basic understanding of why systems freeze up in cooling mode. Hopefully, it has helped to elaborate on how to understand and diagnose one of the main service calls faced in the HVAC industry.
